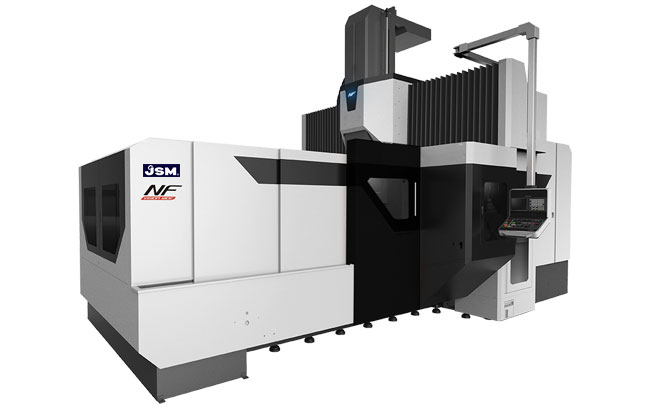

NF Series - Double Column Machining Center

Product Description

NF series, 3-axis bridge-type CNC milling machining center, is one of the most attractive products, for its linear guideways and Z axis box way, wide-ranging Y travel from 2,300 mm to 3,900 mm, and much wider choices of X travel from 2,200 mm to 10,200 mm.

Positioning accuracy could reach ±0.005/300 mm (JIS B6333).

NF satisfies various demands in mold surface cutting, angles cutting, 3D mold cutting and precise contour finishing, and it also completes automatic 5-face machining with special designed accessories such as tool center point compensation, auto multi-angle head attachments and auto tool change system.

Product Feature

  • High rigidity box base, best span work table guideways, and wider load dimension ensured best level dynamic accuracy.
  • Cross-section square beam enabled the centroid of the head close to the beam center to ensure heavy cutting ability.
  • Fully auto 5-face machining capacity
    • Auto head change: 90º head / extension head / universal head
    • AVertical and horizontal auto tool change for 90º head.
    • A3-axis mechanical coordinates system

Product Specification

NF Series NF-
2223		 NF-
3223/
30		 NF-
4223/
30
X axis (mm) 2,200 3,200 4,200
Y axis (mm) 2,300/3,000
Z axis (mm) Box
way		 920/1,020(Opt.)
Linear way 1,000(Opt.)/1,200(Opt.)/1,400(Opt.)
Table dimension (mm) 2,000
×
2,050		 3,000
×
2,050		 4,000
×
2,050
Max. table load (kg) 9,000 13,000 16,000
Spindle motor
(continuous/ 30 minutes rated) (kw)		 18.5/22(22/26Opt.)(30/37Opt.)
Spindle speed (rpm) Box way 2-
step gear		 4,500/6,000(Opt.)
Belt-
driven		 8,000/10,000(Opt.)
Linear way 2-
step gear		 22/26kW: 4,000/6,000(Opt.) ;
30/37kW: 3000(Opt.)/5500(Opt.)
Belt-driven 10,000(Opt.)
Spindle taper ISO 50
Cutting feed rate (mm/
min)		 1-10,000
Rapid traverse (m/
min)		 X:24 X:24 X:18
Y:20 Y:20/15 Y:20/15
Z:15 Z:15 Z:15
Positioning accuracy (mm) Refer to JIS B6333 ±0.005/300, 0.015/Full travel
Repeatability (mm) Refer to JIS B6333 ±0.003
Tool storage capacity (pcs) Vertical type tool change 40/60(Opt.)
Floor-standing type vertical tool chang 40(Opt.)/60(Opt.)
Floor-standing type vertical-horizontal tool change 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
Machine gross weight (kg) 32,000 37,100/
38,600		 43,400/
45,400



NF Series NF-
5223/
30		 NF-
6223/
30		 NF-
8223/
30		 NF-
10223/
30
X axis (mm) 5,200 6,200 8,200 10,200
Y axis (mm) 2,300/3,000
Z axis (mm) Box
way		 920/1,020(Opt.)
Linear way 1,000(Opt.)/1,200(Opt.)/1,400(Opt.)
Table dimension (mm) 5,000
×
2,050		 6,000
×
2,050		 8,000
×
2,050		 10,000
×
2,050
Max. table load (kg) 20,000 22,000 24,000 26,000
Spindle motor
(continuous/ 30 minutes rated) (kw)		 18.5/22(22/26Opt.)(30/37Opt.)
Spindle speed (rpm) Box way 2-
step gear		 4,500/6,000(Opt.)
Belt-
driven		 8,000/10,000(Opt.)
Linear way 2-
step gear		 22/26kW: 4,000/6,000(Opt.) ;
30/37kW: 3000(Opt.)/5500(Opt.)
Belt-driven 10,000(Opt.)
Spindle taper ISO 50
Cutting feed rate (mm/
min)		 1-10,000
Rapid traverse (m/
min)		 X:12.5 X:10 X:8 X:8
Y:20/15 Y:20/15 Y:20/15 Y:20/15
Z:15 Z:15 Z:15 Z:15
Positioning accuracy (mm) Refer to JIS B6333 ±0.005/300, 0.015/Full travel
Repeatability (mm) Refer to JIS B6333 ±0.003
Tool storage capacity (pcs) Vertical type tool change 40/60(Opt.)
Floor-standing type vertical tool chang 40(Opt.)/60(Opt.)
Floor-standing type vertical-horizontal tool change 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
Machine gross weight (kg) 48,400/
50,400		 53,000/
55,400		 62,000/
66,400		 70,000/
76,400



NF Series NF-
3226/
33		 NF-
4226/
33		 NF-
5226/
33
X axis (mm) 3,200 4,200 5,200
Y axis (mm) 2,600/3,300
Z axis (mm) Box
way		 920 /1,020(Opt.)
Linear way 1,000(Opt.)/1,200(Opt.)/1,400(Opt.)
Table dimension (mm) 3,000
×
2,450		 4,000
×
2,450		 5,000
×
2,450
Max. table load (kg) 13,000 16,000 20,000
Spindle motor
(continuous/ 30 minutes rated) (kw)		 18.5/22(22/26Opt.)(30/37Opt.)
Spindle speed (rpm) Box way 2-
step gear		 4,500/6,000(Opt.)
Belt-
driven		 8,000/10,000(Opt.)
Linear way 2-
step gear		 22/26kW: 4,000/6,000(Opt.) ;
30/37kW: 3000(Opt.)/5500(Opt.)
Belt-driven 10,000(Opt.)
Spindle taper ISO 50
Cutting feed rate (mm/
min)		 1-10,000
Rapid traverse (m/
min)		 X:24 X:18 X:12.5
Y:20/15 Y:20/15 Y:20/15
Z:15 Z:15 Z:15
Positioning accuracy (mm) Refer to JIS B6333 ±0.005/300, 0.015/Full travel
Repeatability (mm) Refer to JIS B6333 ±0.003
Tool storage capacity (pcs) Vertical type tool change 40/60(Opt.)
Floor-standing type vertical tool chang 40(Opt.)/60(Opt.)
Floor-standing type vertical-horizontal tool change 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
Machine gross weight (kg) 40,100/
42,100		 46,400/
48,900		 51,400/
53,900



NF Series NF-
6226/
33		 NF-
8226/
33		 NF-
10226/
33
X axis (mm) 6,200 8,200 10,200
Y axis (mm) 2,600/3,300
Z axis (mm) Box
way		 920 /1,020(Opt.)
Linear way 1,000(Opt.)/1,200(Opt.)/1,400(Opt.)
Table dimension (mm) 6,000
×
2,450		 8,000
×
2,450		 10,000
×
2,450
Max. table load (kg) 22,000 24,000 26,000
Spindle motor
(continuous/ 30 minutes rated) (kw)		 18.5/22(22/26Opt.)(30/37Opt.)
Spindle speed (rpm) Box way 2-
step gear		 4,500/6,000(Opt.)
Belt-
driven		 8,000/10,000(Opt.)
Linear way 2-
step gear		 22/26kW: 4,000/6,000(Opt.) ;
30/37kW: 3000(Opt.)/5500(Opt.)
Belt-driven 10,000(Opt.)
Spindle taper ISO 50
Cutting feed rate (mm/
min)		 1-10,000
Rapid traverse (m/
min)		 X:10 X:8 X:8
Y:20 Y:20/15 Y:20/15
Z:15 Z:15 Z:15
Positioning accuracy (mm) Refer to JIS B6333 ±0.005/300, 0.015/Full travel
Repeatability (mm) Refer to JIS B6333 ±0.003
Tool storage capacity (pcs) Vertical type tool change 40/60(Opt.)
Floor-standing type vertical tool chang 40(Opt.)/60(Opt.)
Floor-standing type vertical-horizontal tool change 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
Machine gross weight (kg) 56,000/
58,900		 66,000/
69,900		 75,000/
79,900



NF Series NF-3232/39 NF-4232/39 NF-5232/39
X axis (mm) 3,200 4,200 5,200
Y axis (mm) 3,200/3,900
Z axis (mm) Box
way		 920/1,020(Opt.)
Linear way 1,000(Opt.)/1,200(Opt.)/1,400(Opt.)
Table dimension (mm) 3,000×2,450 4,000×2,450 5,000×2,450
Max. table load (kg) 13,000 16,000 20,000
Spindle motor
(continuous/ 30 minutes rated) (kw)		 18.5/22(22/26Opt.)(30/37Opt.)
Spindle speed (rpm) Box way 2-
step gear		 4,500/6,000(Opt.)
Belt-
driven		 8,000/10,000(Opt.)
Linear way 2-
step gear		 22/26kW: 4,000/6,000(Opt.) ; 30/37kW: 3000(Opt.)/5500(Opt.)
Belt-driven 10,000(Opt.)
Spindle taper ISO 50
Cutting feed rate (mm/min) 1-10,000
Rapid traverse (m/min) X:24 X:18 X:12.5
Y:15/12 Y:15/12 Y:15/12
Z:15 Z:15 Z:15
Positioning accuracy (mm) Refer to JIS B6333 ±0.005/300, 0.015/Full travel
Repeatability (mm) Refer to JIS B6333 ±0.003
Tool storage capacity (pcs) Vertical type tool change 40/60(Opt.)
Floor-standing type vertical tool chang 40(Opt.)/60(Opt.)
Floor-standing type vertical-horizontal tool change 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
Machine gross weight (kg) 44,500/46,500 49,500/53,000 55,500/59,000



NF Series NF-6232/39 NF-8232/39 NF-10232/39
X axis (mm) 6,200 8,200 10,200
Y axis (mm) 3,200/3,900
Z axis (mm) Box
way		 920/1,020(Opt.)
Linear way 1,000(Opt.)/1,200(Opt.)/1,400(Opt.)
Table dimension (mm) 6,000×2,450 8,000×2,450 10,000×2,450
Max. table load (kg) 22,000 24,000 26,000
Spindle motor
(continuous/ 30 minutes rated) (kw)		 18.5/22(22/26Opt.)(30/37Opt.)
Spindle speed (rpm) Box way 2-
step gear		 4,500/6,000(Opt.)
Belt-
driven		 8,000/10,000(Opt.)
Linear way 2-
step gear		 22/26kW: 4,000/6,000(Opt.) ; 30/37kW: 3000(Opt.)/5500(Opt.)
Belt-driven 10,000(Opt.)
Spindle taper ISO 50
Cutting feed rate (mm/min) 1-10,000
Rapid traverse (m/min) X:10 X:8 X:8
Y:15/12 Y:15/12 Y:15/12
Z:15 Z:15 Z:15
Positioning accuracy (mm) Refer to JIS B6333 ±0.005/300, 0.015/Full travel
Repeatability (mm) Refer to JIS B6333 ±0.003
Tool storage capacity (pcs) Vertical type tool change 40/60(Opt.)
Floor-standing type vertical tool chang 40(Opt.)/60(Opt.)
Floor-standing type vertical-horizontal tool change 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
Machine gross weight (kg) 60,500/63,500 70,500/74,500 79,500/84,500
