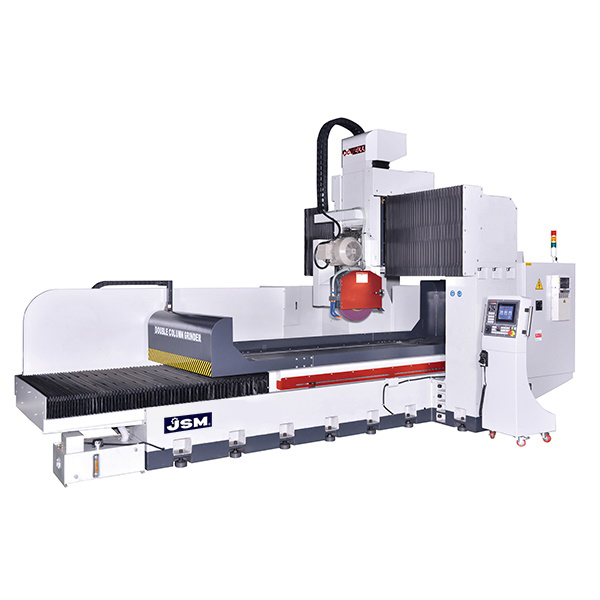

| Model |
DSG-4060 |
DSG-4080 |
| Table Size (mm) |
1000x1500 |
1000x2000 |
| Max. grinding length |
Longitudinal (mm) |
1500 |
2000 |
| Max. grinding width |
Crosswise (mm) |
1000 |
1000 |
| Distance from table to spindle center (mm) (Horizontal) |
920 |
920 |
| Distance from table to spindle center (mm) (Vertical) (Opt.) |
750 |
750 |
| Table speed |
2 - 25 m/min |
| Table guide way |
V and V way |
| Distance between two coloum (mm) |
1400 |
1400 |
| Continuous cross feed |
1200 mm/min |
| Auto cross feed increment |
5 - 30 mm |
| Cross hand feed per revolution |
x1, x10, x100 (MPG) / 0.1, 1, 10mm |
| Cross hand feed per graduation |
x1, x10, x100 (MPG) / 0.001, 0.01, 0.1mm |
| Vertical hand feed per revolution |
x1, x10, x100 (MPG) / 0.1, 1, 10mm |
| Vertical hand feed per graduation |
x1, x10, x100 (MPG) / 0.001, 0.01, 0.1mm |
| Vertical rapid traverse |
1200 mm/min |
| Spindle motor (Horizontal) |
20HP |
| Spindle motor (Vertical) Opt. |
Std. 7.5HP Opt. 10HP |
| Vertical feed motor |
1 KW servo motor |
| Cross feed motor |
1 KW servo motor |
| Hydraulic motor |
7.5HP |
10HP |
| Grinding wheel DxWxB (Horizontal) |
Std. 500x50x203mm |
| Grinding wheel DxWxB (Vertical) Opt. |
300x38x127mm |
| Table loading |
2000kg |
2500kg |
| Machine weight |
16000kg |
17500kg |
| Machine dimensions (LxWxH) |
6.0x3.5x3.5m |
7.2x3.5x3.5m |
