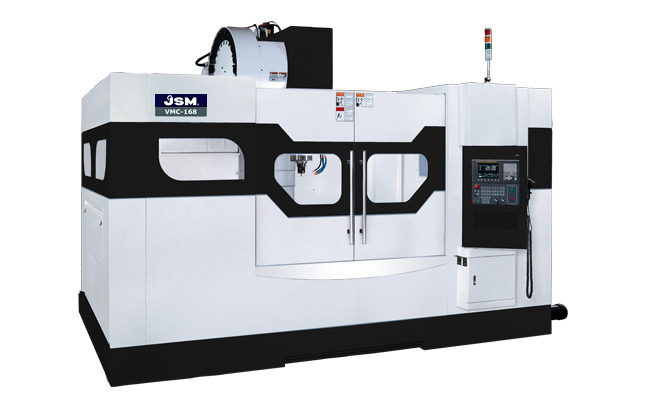

VMC 50/VMC 65/VMC 85/VMC 101/VMC 106/VMC 110/VMC 150/VMC 148/ VMC 168/ VMC 188 - Vertical Machining Center

Product Description

Superb mechanical structure features outstanding damping co-efficient. All major structural components are made from Meehanite cast iron: 1). The melted iron is annealed in the furnace. 2). The cast iron is stress released in the electric oven at 600 degree. 3). The slide ways are hardened by high frequency induction.

Product Feature

Four slide ways
- To maintain absolute rigidity and to keep motion control’s extraordinary sensitivity the machine base with four slide ways is the best technical solution.
The Mightiest equipment
High frequency induction treatment on slide ways, the hardened depth is 2 mm, the hardness is HRC 55.
Big enough to cut extra large workpieces Compact enough to be shipped in a container
Counter weight balance system
Rotex coupling from Germany
Automatic tool changer

Product Specification

VMC Series	VMC-50	VMC-65	VMC-85	VMC-101
Travels
X Axis (mm)	500	650	850	1010
Y Axis (mm)	400	500
Z Axis (mm)	450	520
Spindle Nose To Table Surface (mm)	120~570	120~650
Spindle Center To Z Axis Rail Surface (mm)	480	540
Z Axis Rail Surface To Table Center (mm)	280~680	290~790
Feedrate
X,Y Axes Rapid Feed (m/min)	20	20
Z Axis Rapid Feed (m/min)	20	20
Cutting Feed (m/min)	8	8
BallScrew Dianeter & Pitch	D32xP8	D40xP10
Table
Table Size (mm)	700x400	800x450	1000x450	1200x450
Max, Permissible Loading (kgs)	300	400	450	450
T-slot Number	3	3	3	5
Pitch/T-slot Width (mm)	125/18	125/18	125/18	75/18
Headstock
Spindle Driven Method	Belt Driven	Belt Driven
Spindle Taper	#40(BT/CAT/DIN)	#40(BT/CAT/DIN)
Spindle Motor(cont./15min) (kw)	7.5/11	7.5/11
Spindle OD (mm)	Ø65	Ø65
Spindle Speed (r.p.m.)	8000	8000
ATC
ATC Style	Arm Type	Arm Type
Tool Number	24	24
Max, Tool Weight (kg)	5	5
Max, Tool Diameter (mm)	80/125	80/125
(With Adj. Tool/Without Adj. Tool)	-	-
Max, Tool Length (mm)	300	300
General Information
Machine Weight (kgs)	3800	4990	5150	5400
Machine Dimension (WxDxH) (mm)	2035x2122x2385	2508x2180x2700	2508x2480x2700	2508x2480x2700
Positioning Accuracy (mm)	0.005/300	0.005/300
Repeatable Accuracy (mm)	±0.003	±0.003
Required air Pressure (kgs/cm²)	≥6	≥6

VMC Series	VMC-106	VMC-110	VMC-150
Travels
X Axis (mm)	1020	1100	1500
Y Axis (mm)	600	600	600
Z Axis (mm)	550	600(700)	600(700)
Spindle Nose To Table Surface (mm)	150~700	150~750	150~750
Spindle Center To Z Axis Rail Surface (mm)	640	650	650
Z Axis Rail Surface To Table Center (mm)	365~915	350~950	350~950
Feedrate
X,Y Axes Rapid Feed (m/min)	20	20	16
Z Axis Rapid Feed (m/min)	20	20	16
Cutting Feed (m/min)	8	8	8
BallScrew Dianeter & Pitch	D40xP10
Table
Table Size (mm)	1100x550	1200x600	1600x600
Max, Permissible Loading (kgs)	800	800
T-slot Number	5	5
Pitch/T-slot Width (mm)	100/18	100/18
Headstock
Spindle Driven Method	Belt Driven
Spindle Taper	BT-40/CT-40	BT-40/CT-40	BT-40/CT-40
Spindle Motor(cont./15min) (kw)	11/15	11/15	11/15
Spindle OD (mm)	Ø65	Ø70	Ø70
Spindle Speed (r.p.m.)	8000	8000	8000
ATC
ATC Style	Arm Type	Arm Type	Arm Type
Tool Number	24	24	24
Max, Tool Weight (kg)	7	7	7
Max, Tool Diameter (mm)	80/125	80/125	80/125
(With Adj. Tool/Without Adj. Tool)	-	NA	NA
Max, Tool Length (mm)	300	300	300
General Information
Machine Weight (kgs)	6000	8800	9200
Machine Dimension (WxDxH) (mm)	3000x2600x2650	3300x3100x2700	3800x3100x2700
Positioning Accuracy (mm)	0.005/300	0.005/300	0.005/300
Repeatable Accuracy (mm)	±0.003	±0.003	±0.003
Required air Pressure (kgs/cm²)	≥6	≥6	≥6

VMC Series	VMC-1148	VMC-168	VMC-188
Travels
X Axis (mm)	1400	1600	1800
Y Axis (mm)	800
Z Axis (mm)	800
Spindle Nose To Table Surface (mm)	200~1000
Spindle Center To Z Axis Rail Surface (mm)	900
Z Axis Rail Surface To Table Center (mm)	500~1300
Feedrate
X,Y Axes Rapid Feed (m/min)	15
Z Axis Rapid Feed (m/min)	12
Cutting Feed (m/min)	8
BallScrew Dianeter & Pitch	D50xP10
Table
Table Size (mm)	1500x800	1700x800	2000x800
Max, Permissible Loading (kgs)	1800	2000	2200
T-slot Number	5
Pitch/T-slot Width (mm)	150/18
Headstock
Spindle Driven Method	2-Step High-Low Speed Gear Driven
Spindle Taper	#50(BT/CAT/DIN)
Spindle Motor(cont./15min) (kw)	18.5/22
Spindle OD (mm)	Ø90
Spindle Speed (r.p.m.)	6000
ATC
ATC Style	Arm Type
Tool Number	24
Max, Tool Weight (kg)	15
Max, Tool Diameter (mm)	110/200
(With Adj. Tool/Without Adj. Tool)	-
Max, Tool Length (mm)	350
General Information
Machine Weight (kgs)	13000	14000	15000
Machine Dimension (WxDxH) (mm)	4000x2900x2900	4400x2900x2900	4800x2900x2900
Positioning Accuracy (mm)	0.005/300
Repeatable Accuracy (mm)	±0.003
Required air Pressure (kgs/cm²)	≥6
