| Model |

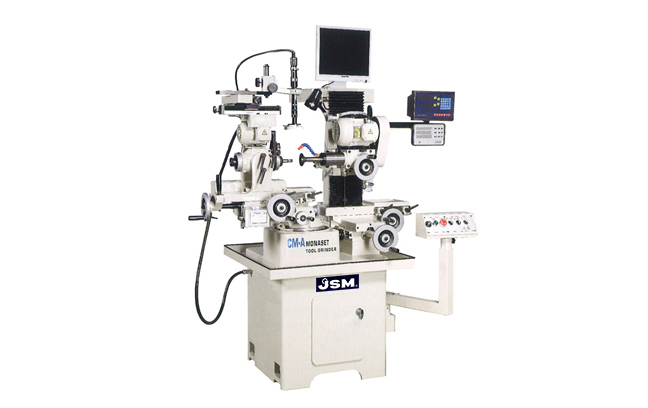

CM-A |
| Capacity |
| Workhead |
| Swing over main slide, max. dia (mm) |
304 |
| Collet work dia. (mm) |
max. 32 |
| min. 3 |
| Lead generated by spiral lead mechanism, min. |
45° |
| Lead between spindle nose and tail center, max. (mm) |
152 |
| Grinding wheel dia, max. (mm) |
100 |
| Range |
| Workhead |
| Main slide travel (mm) |
146 |
| Offset slide travel, total (mm) |
133 |
| -front of center (mm) |
76 |
| -rear of center (mm) |
57 |
| Workhead angular adjustment |
| Horizontal plane (turntable base) |
235° |
| Vertical plane, above |
+40° |
| below center |
-40° |
| Wheelhead |
| Longitudinal slide travel (mm) |
152 |
| Vertical slide travel, total (mm) |
241 |
| -above center (mm) |
114 |
| -below center (mm) |
127 |
| Cross slide travel, total (mm) |
190 |
| -front of center (mm) |
76 |
| -rear of center (mm) |
114 |
| Spindle speeds |
| Workhead, one speed (rpm) |
436 |
| Wheel head, three speeds (rpm) |
4000, 5729, 8000rpm |
| Workhead drive |
1/4HP |
| Wheel head drive |
1/2HP |
| Floor Space and Weight |
| Area of base only (mm) |
635x660 |
| Area required for machine (mm) |
1524x1701 |
| Height, overall with wheelhead raised (mm) |
1517 |
| Net weight (kg) |
847 |
