Product Specification

​

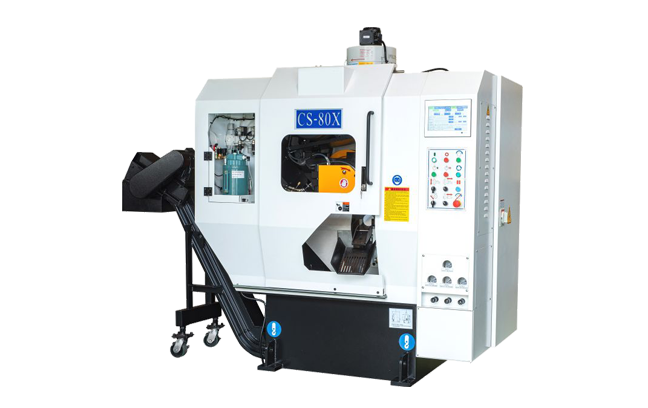

Model CS-80X
Cutting capacity (mm) ●10-80■10-60
Motor output (HP) Blade-20, Hyd. -2
Bar feed servo-1.33
Servo feedrate-4.6
Blade size (mm) Ø285xØ32xT2.0
Blade speed (rpm) 50-200 Inverter controlled variable speed
Blade feed cut AC servo motor + ball screw
Bar feed AC servo motor + ball screw
Auto feed length (mm) Single feed 6-600
Multiple feed 600-9999
Auto chip vonveyor Chain belt chip conveyor (opt.)
Cooling system Air compressed oil mist
