| Model |

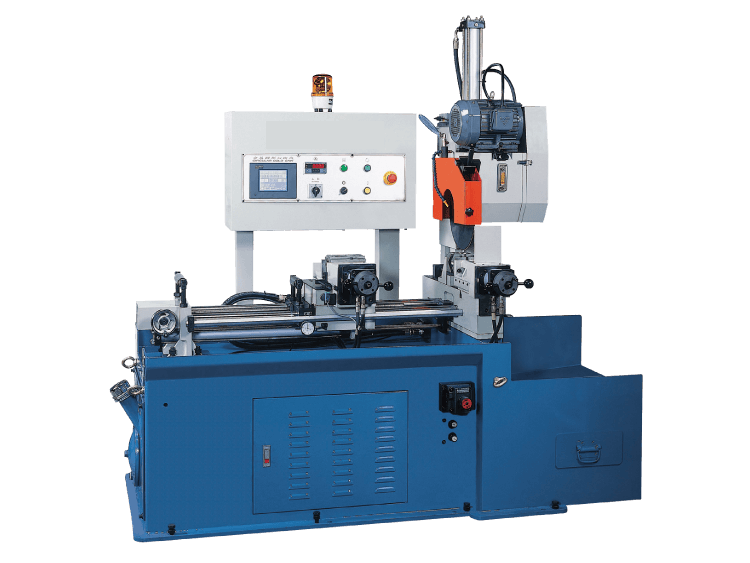

FHC-485AV |
| Main Drive Motor |
5HP 4 Pole A (std.)
5HP 2 Pole B (opt.) |
Blade Speeds
A: 4 sections
B: 2 sections
|
A:L 20RPM-70RPM (std.)
H 35RPM-120RPM
B:L 40RPM-140RPM (opt.)
H 70RPM-240RPM
|
| Frequency Inverter |
5 kw / 7.5 HP |
| Head Swivel |
90° |
| Clamping Vise |
Single |
| Coolant Pump Motor |
1/8HP or 1/4HP |
| Max. Clamping Capacity |
150 |
Saw Blade Size
|
Diameter (mm) : HSS Ø250 - Ø425(10"-17") Standard Ø350 |
| Bore (mm) : Ø32 |
| Pin Holes (mm) : 2xØ11xPCD Ø63 |
Bar Feeding Length |
Single Stroke (mm) : 0-700 Servo motor complete cutting cycle |
| Double Stroke (mm) : 0-700 Servo motor complete cutting cycle |
| Thee Stroke (mm) : 0-700 Servo motor complete cutting cycle |
| Servo Motor Feeding |
1KW |
| Hydraulic Pump Motor |
3HP (4P) |
| Operation Pressure |
25-35 kg/cm² |
| Packing size (LxWxH) (mm) |
2280x1600x2200 |
| N.W./G.W. (kg) |
1450/1650 |
