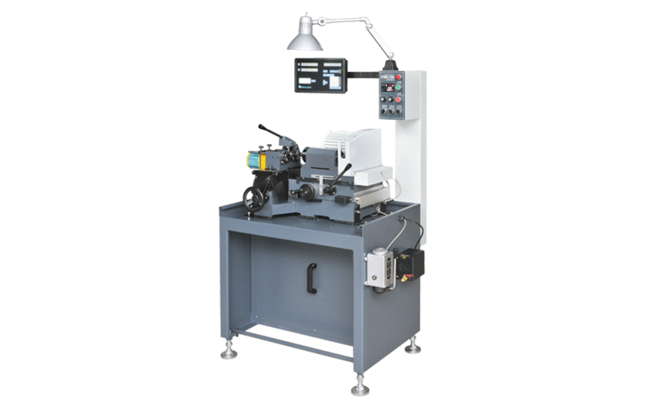

| Model |
H16-SP |
| Clamping range of workpiece diameters (mm) |
1-25 |
| Range of grinding diameter (mm) |
1-19 |
| Travel X axis |
90 |
| Travel Y axis |
50 |
| Y axis feed per graduation (mm) |
0.005 |
| X, Y axes feed method |
Manually |
| X, Y axes feed rate |
Manually |
| Work spindle speed (variable) (RPM) |
0-380 |
| Work head swiveling angle |
+/- 5 degrees |
| Work head lubrication motor (W) |
25 |
| Grinding Wheel motor (variable) (HP) |
1 |
| Grinding Wheel spindle speed (variable) (RPM) |
0-50000 |
| Machine Dimensions (LxWxH) (mm) |
850x820x1640 |
| Machine Weight (kgs) |
330 |
