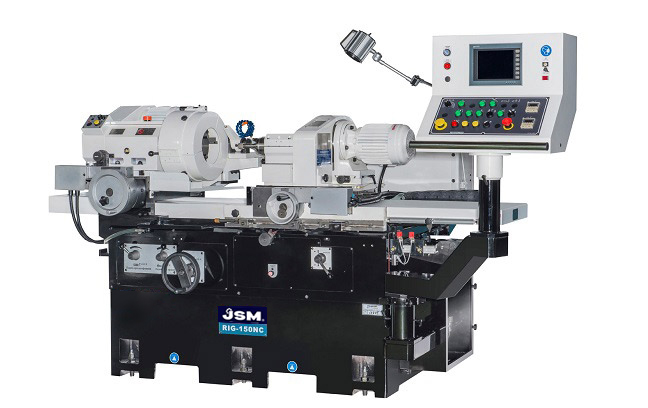

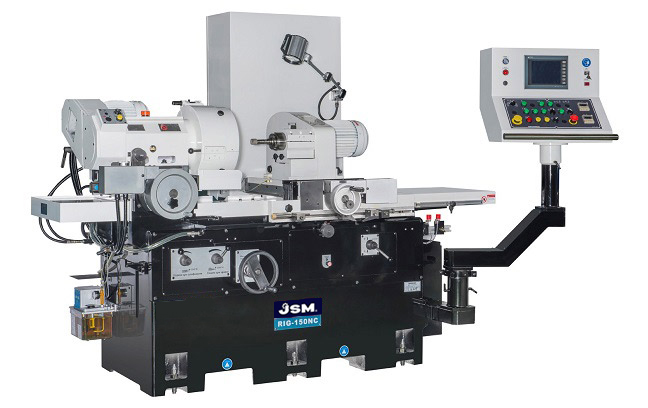

RIG-150/RIG-150NC/RIG-150CNC
Home
>
Products
>
Metal Cutting Machine
>
Grinding Machine
>
Internal Grinding Machine
> RIG-150/RIG-150NC/RIG-150CNC
NEXT
Out of stock.,
contact us
Product Specification
Model
RIG-150CNC
RIG-150NC
RIG-150
Capacity
Grinding range (ID) (mm)
6-150
6-150
6-150
Gringding depth (max.) (mm)
150
150
150
Max. grinding diameter (OD) (mm)
-
-
-
Max. Length of outer grinding (mm)
-
-
-
Max. clamping length (mm)
150
150
150
Workhead
Spindle speed (rpm)
0-800
0-800
0-800
Workhead swivel (deg)
+13°~-5°
+13°~-5°
+13°~-5°
Table
Max. table speed Z-axis (m/min)
20
≒9
≒9
Max. table traverse (mm)
400
540
540
Driver motors
Grinding wheel motor (KW)
1.5
1.5
1.5
Workhead motor (KW)
0.75
0.75
0.75
